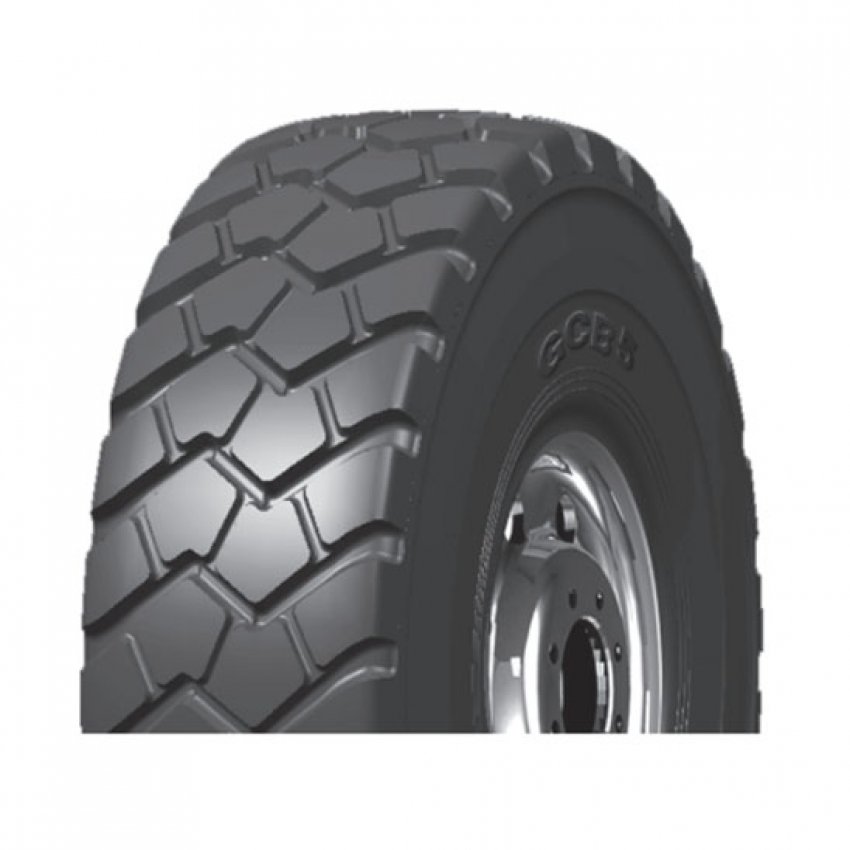

1. Special pattern design with elegant formal expressions
2. With excellent traction and buoyancy performance
3. Outstanding stability and operating comfort with large pattern plate and long service life
Size | Star Level | Type | Code Indication | Standard Rim | Tread Depth | Load index | New tyre inflated dimension (mm) | Max. Load and Inflation pressure (kg/kpa) TRA | ||||
(mm) | (32nds) | TRA | S. W. | O.D. | 50km/h | 10km/h | ||||||
17.5R25 (445/80R25) | ★ | TL | E-3/L-3 | 14.00/1.5 | 26.5 | 33/32 | 157B/176A2 | 445 | 1348 | 4125/375 | 7100/500 | |
★★ | 167B/182A2 | 5450/525 | 8500/650 | |||||||||
20.5R25 (525/80R25) | ★ | TL | E-3/L-3 | 17.00/2.0 | 28.5 | 36/32 | 168B/186A2 | 520 | 1492 | 5600/375 | 9500/500 | |
★★ | 177B/193A2 | 7300/525 | 11500/650 | |||||||||
23.5R25 | ★ | TL | E-3/L-3 | 19.5/2.5 | 32 | 40/32 | 176B/195A2 | 597 | 1617 | 7100/375 | 12150/500 | |
★★ | 185B/201A2 | 9250/525 | 14500/650 | |||||||||
26.5R25 | ★ | TL | E-3/L-3 | 22.00/3.0 | 35 | 44/62 | 202A2/184B | 673 | 1750 | 9000/375 | 15000/500 | |
★★ | 209A2/193B | 11500/525 | 18500/650 | |||||||||
29.5R25 | ★ | TL | E-4/L-4 | 25.00/3.5 | 57 | 72/32 | 191B/208A2 | 750 | 1873 | 10900/375 | 18000/500 | |
★★ | 200B/216A2 | 14000/525 | 22400/650 |
